Glen Strightiff/Chris Wilson C3 build
- Nick
- Founder
- Posts: 3969
- Joined: Sat Dec 05, 2009 12:36 pm
- Bronco Info: 1995 bird poop target
- Location: La Habra Ca.
Re: Glen Strightiff/Chris Wilson C3 build
Straight up awesome build!
"If at first you don't succeed, it may be cheaper to buy it."
- ESHALLBETTER
- Posts: 1580
- Joined: Fri Dec 11, 2009 8:49 am
- Bronco Info: 85 class 3, 70's somthing trail bronco.
- Location: Minneapolis, MN
Re: Glen Strightiff/Chris Wilson C3 build
For the love of God and all that is good in this world! You can't write this and not post pics! Can't wait to see this thing! Keep up the good work.baja-chris wrote:Once Steve uploads the old stuff, I've got some new content to add. Right now the truck is a roller and we are fitting the body and cage. It's on the wheel and tire package we will run (17" Walker beadlocks with 37" BFG Baja T/A's). I've ordered a 427 from Ford based on the Boss 351 block, 535hp/545tq. Harmon built us an 80 gal fuel cell. Stole the rear Mastercraft 3G seats out of my 4-seater, will get some replacements for it later. Picked up brake pedal and masters from the BFG classifieds. All the big parts are there to jam on the cage fabrication. The body parts are freshly sand blasted, newly exposed metal easier to weld to and easier to paint.
- baja-chris
- Posts: 712
- Joined: Thu Dec 10, 2009 7:55 pm
Re: Glen Strightiff/Chris Wilson C3 build
GFB classifieds, not BFG!
Here is a teaser of the look we are going after. I hope we don't get sent to bronco hell for this. Sacrilegious for those who worship bronco purity.
Here is a teaser of the look we are going after. I hope we don't get sent to bronco hell for this. Sacrilegious for those who worship bronco purity.
- Attachments
-
- P6030669.JPG (57.14 KiB) Viewed 3593 times
- robertcrav
- Let me google that for you
- Posts: 4313
- Joined: Thu Jan 13, 2011 8:06 am
- Bronco Info: Lana - Stock width c/t coil-overs/bypasses -- Sylvia - Stock width 4" Rancho kit on Billies
- Location: South O.C.
- Contact:
- baja-chris
- Posts: 712
- Joined: Thu Dec 10, 2009 7:55 pm
Re: Glen Strightiff/Chris Wilson C3 build

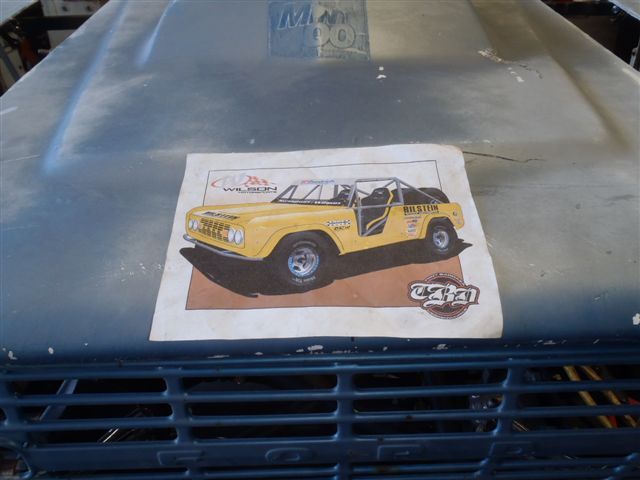

The body we are modifying for this build is from an old race bronco. Hope that there is some sort of pent up race genes in the metal to help make her run wild again. Note the faded out 1982 Mint 400 sticker on the hood. Also shown is some artwork Tony Barazza drew up for us to show the concept.
- Attachments
-
- P6030655.JPG (44.89 KiB) Viewed 3588 times
-
- P6030662.JPG (45.75 KiB) Viewed 3588 times
-
- Bronco Broker
- Posts: 2434
- Joined: Tue Dec 08, 2009 11:00 am
- Bronco Info: Bronco AKA The Silver Bullet
- Location: Orange County, California
Re: Glen Strightiff/Chris Wilson C3 build
Way cool build Chris! Keep the pics coming.
Chris
Chris
- ESHALLBETTER
- Posts: 1580
- Joined: Fri Dec 11, 2009 8:49 am
- Bronco Info: 85 class 3, 70's somthing trail bronco.
- Location: Minneapolis, MN
Re: Glen Strightiff/Chris Wilson C3 build
I'm geeking out super bad over this project!
- ChaseTruck754
- Spy/Ninja
- Posts: 9194
- Joined: Thu Jan 28, 2010 9:46 am
- Bronco Info: Don't have one - just old Ford trucks
- Location: Huntington Beach, CA
Re: Glen Strightiff/Chris Wilson C3 build
I'm digging the dual headlights to take up the widening of the body. This thing is SO cool!
Owner of only dead and forgotten projects
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build
I'll start uploading more tonight so we can get this thread up to date. Mostly because I want to see more, too!
Sho nuff,
SteveG
SteveG
-
- Posts: 199
- Joined: Wed Aug 10, 2011 2:05 pm
- Bronco Info: No broncos, but I have a 73 f100 with a big block. Does that count?
Re: Glen Strightiff/Chris Wilson C3 build
This is a great project. It's a shame about the class 3 body rules. Strange how it doesn't matter in class 8, seems like everybody runs a late model body on an earlier chassis.
When I first saw the dual headlights, I thought the bezels were out of an early econoline van. I know they aren't after reading more, but thats what they remind me of. Now you've put the hooks in me, I need more pics!
When I first saw the dual headlights, I thought the bezels were out of an early econoline van. I know they aren't after reading more, but thats what they remind me of. Now you've put the hooks in me, I need more pics!
- tcm glx
- Peanut Butter
- Posts: 7308
- Joined: Tue Dec 08, 2009 11:19 am
- Bronco Info: 93 Ford Bronco 5.8
- Location: Riverside Ca
- Contact:
Re: Glen Strightiff/Chris Wilson C3 build
SteveG wrote:I'll start uploading more tonight so we can get this thread up to date. Mostly because I want to see more, too!
Is it tonight yet.....
Re: Glen Strightiff/Chris Wilson C3 build
Is that hood off of a lengthened Bronco run by a M Vest at one time?
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build
Maybe.tcm glx wrote:SteveG wrote:I'll start uploading more tonight so we can get this thread up to date. Mostly because I want to see more, too!
Is it tonight yet.....
Sho nuff,
SteveG
SteveG
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build

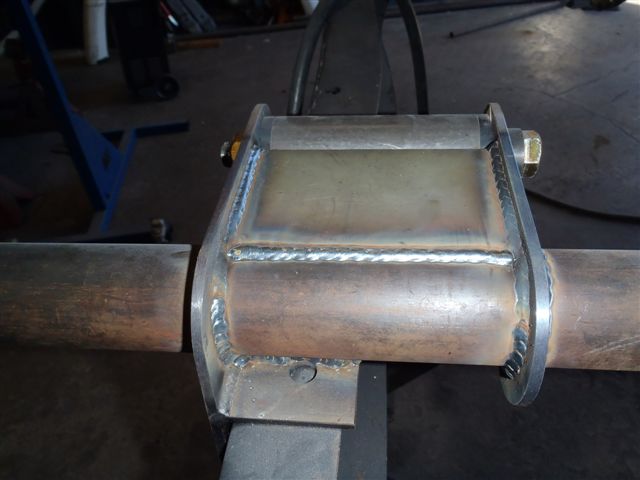

baja-chris wrote:Now the frame pivot brackets were made and the real links made. Again all plate is 4130 stock as is all tubing. The lower link arms are Tig welded but most else is Mig welded. The rear most shock mount is for an 18" stroke bypass (Blackhawk) and the front mount on the trailing arm is for a 16" coilover (or just another shock when we elect to run without coils). The upper and lower links share a common bracket pictured here.
- Attachments
-
- 11.jpg (52.87 KiB) Viewed 3514 times
-
- 12.jpg (41.4 KiB) Viewed 3514 times
-
- 13.jpg (41.57 KiB) Viewed 3514 times
-
- 14.jpg (45.64 KiB) Viewed 3514 times
Sho nuff,
SteveG
SteveG
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build

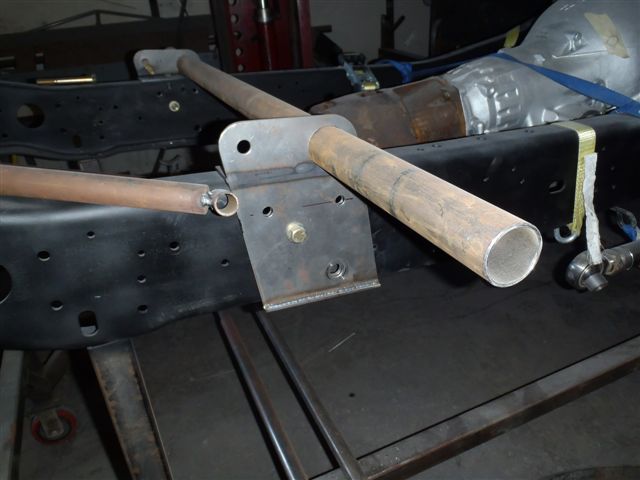

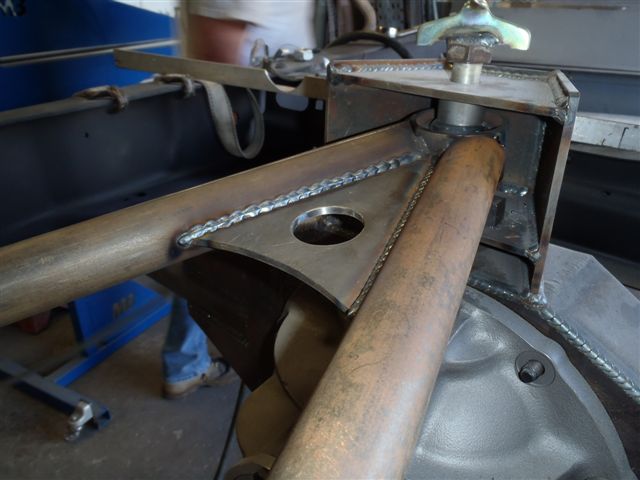

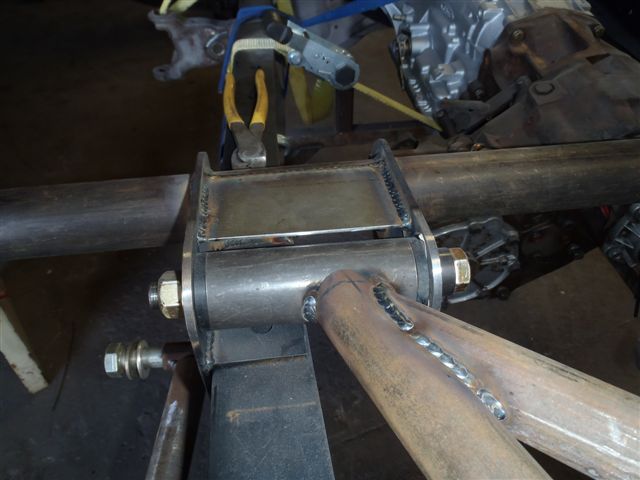

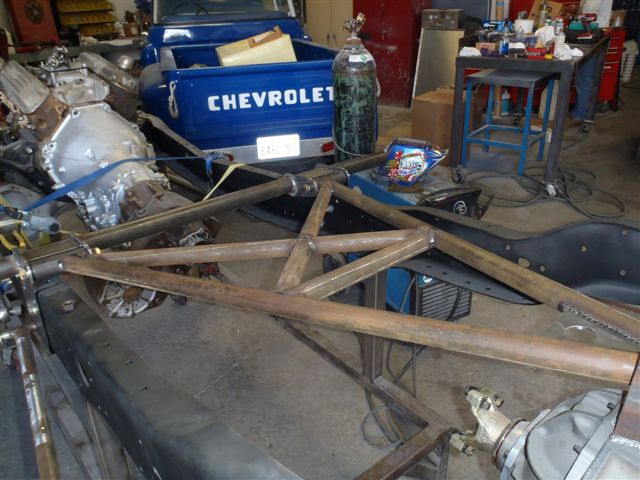

baja-chris wrote:Upper 3-link is built. This is a stronger setup than a 4-link given the length of the link we ended up needing and the fact that it has to fit between the frame rails to remain legal. And the strongest way to build a 3-link is to use a uniball instead of a heim joint and locate it's bolt vertically in double shear. You lose any ability to adjust it. Sigh, another compromise. We used a larger uniball than the application needs in the hopes of increased service life. As our friend Durka Durka likes to say, Overkill is Underrated
- Attachments
-
- 15.jpg (45.64 KiB) Viewed 3513 times
-
- 16.jpg (67.86 KiB) Viewed 3513 times
-
- 17.jpg (48.49 KiB) Viewed 3513 times
-
- 18.jpg (49.2 KiB) Viewed 3513 times
-
- 19.jpg (67.86 KiB) Viewed 3513 times
Sho nuff,
SteveG
SteveG
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build

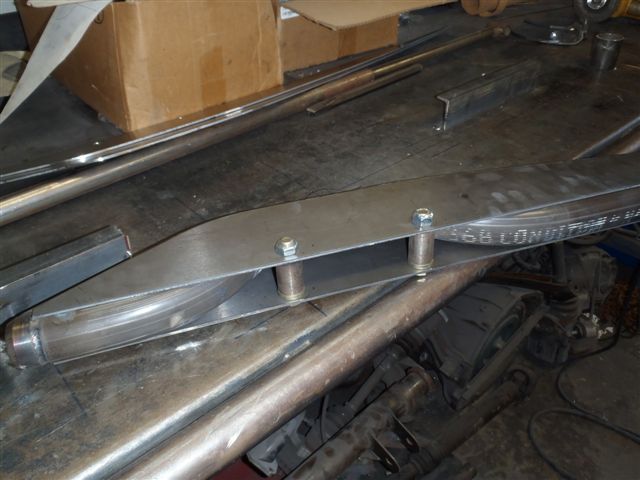

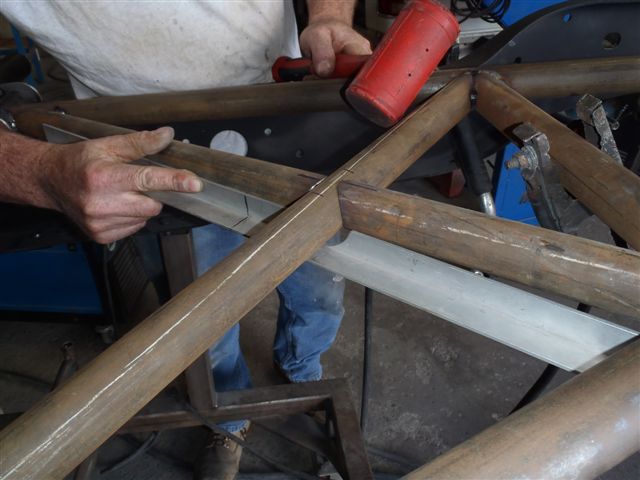

baja-chris wrote:And the lower links are built up. Lower tube is continuous with a heim bung welded in and rosetted. The upper tubes curve down to form the pocket for the shock ends and a bridge tube ties them together. Then each side gets double plates of 1/8" 4130 for 1/4" total thickness. The pocket is finished off with a bottom plate inside the pocket and a bridge plate on top. Lastly, the arms are sanded to fit the pivot bearings (made on the lathe) and everything is Tig welded.
- Attachments
-
- 20.jpg (51.89 KiB) Viewed 3512 times
-
- 21.jpg (49.79 KiB) Viewed 3512 times
-
- 22.jpg (53.13 KiB) Viewed 3512 times
-
- 23.jpg (56.84 KiB) Viewed 3512 times
Sho nuff,
SteveG
SteveG
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build

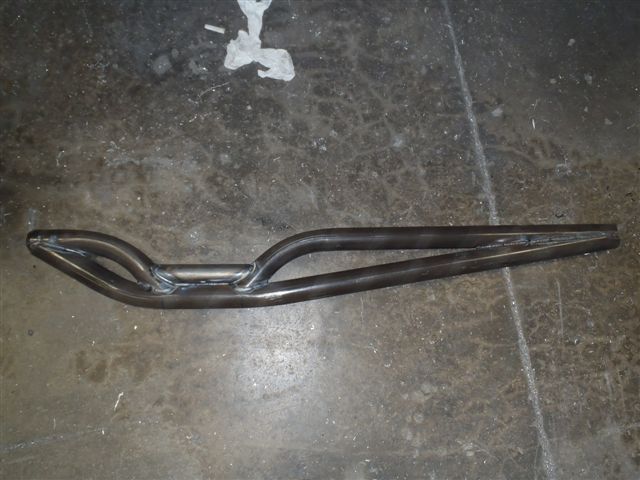

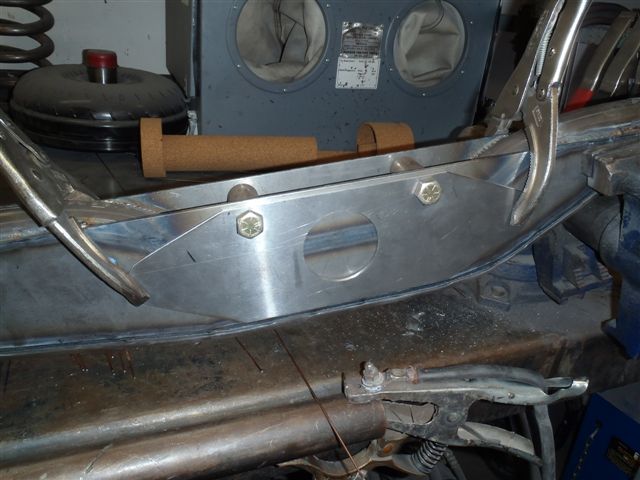

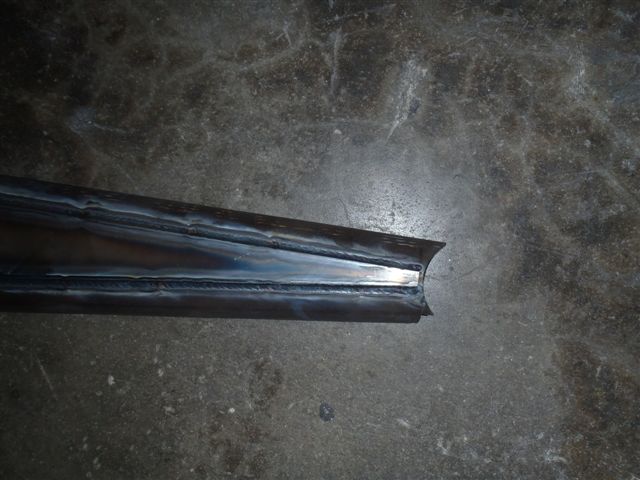

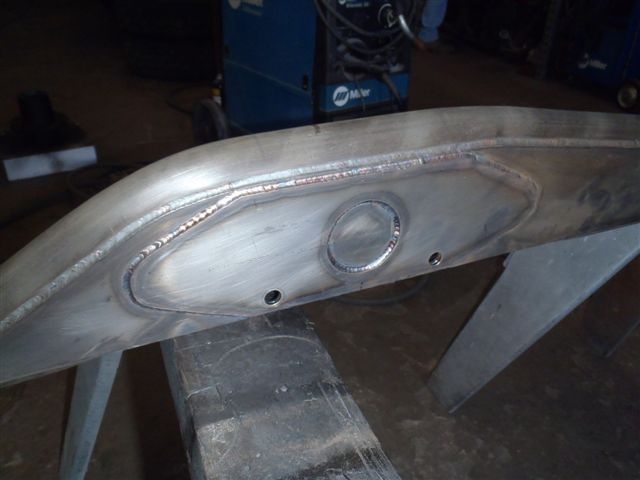

baja-chris wrote:More lower link pics. It's easy to see why these are expensive to have built. Lots of hours into them and lots of expensive materials. We had the local metal supply house (Competitive Metals) shear the plates to rough shape for us. Saved many hours on the band saw.
- Attachments
-
- 24.jpg (57.08 KiB) Viewed 3512 times
-
- 25.jpg (57.53 KiB) Viewed 3512 times
-
- 26.jpg (40.86 KiB) Viewed 3512 times
-
- 27.jpg (57.89 KiB) Viewed 3512 times
-
- 29.jpg (55.15 KiB) Viewed 3512 times
-
- 30.jpg (39.5 KiB) Viewed 3512 times
-
- 31.jpg (40.35 KiB) Viewed 3512 times
-
- 32.jpg (59.24 KiB) Viewed 3512 times
Sho nuff,
SteveG
SteveG
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build
asdf
- Attachments
-
- 33.jpg (59.52 KiB) Viewed 3512 times
Sho nuff,
SteveG
SteveG
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build
baja-chris wrote:Leaf springs are a sway bar. And the need for a sway bar is also a function of suspension geometry and setup as well as driver comfort. Right now I don't think we will need one but if we do then we will build one. Remember it's a racecar for the dirt. Highway manners are mostly irrelevant.
Thought about drain holes but left them out. It's not like a prerunner where you might use it and park it with water and silt collecting in pockets. It will be cleaned out each use and it's easy to blow the water out of those pockets. For the rear uniball, I was thinking of some rubber flaps but not sure if they would really help.

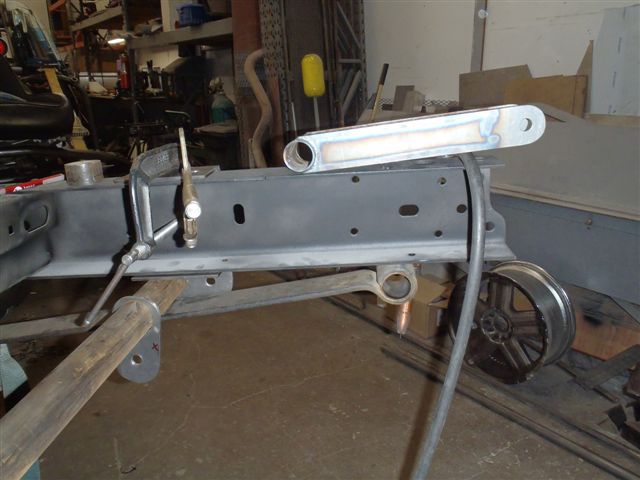

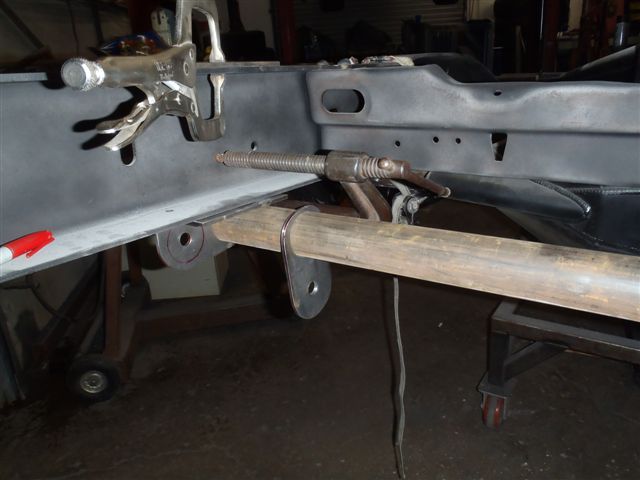

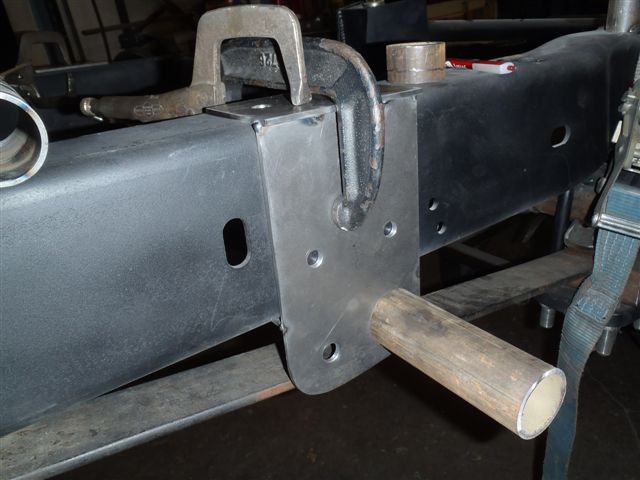

Cut up a bunch of 3/16" 4130 plate to make the four shackle hanger brackets (and the front radius arm pivots which are in another thread). The rear shackle bracket gets a cross member under the frame. The front one will have to do without since the rear links use that space, instead they will just tie into the cage.
- Attachments
-
- 34.jpg (51.94 KiB) Viewed 3512 times
-
- 35.jpg (40.25 KiB) Viewed 3512 times
-
- 36.jpg (44.72 KiB) Viewed 3512 times
-
- 37.jpg (52.13 KiB) Viewed 3512 times
Sho nuff,
SteveG
SteveG
- SteveG
- Admin
- Posts: 6112
- Joined: Sat Dec 05, 2009 10:25 am
- Bronco Info: Wilson: 96, Stretched 17.5", coil-overs / Bypasses, 4-link, a fridge and all the amenities :)
- Location: Arroyo Grande, CA
Re: Glen Strightiff/Chris Wilson C3 build

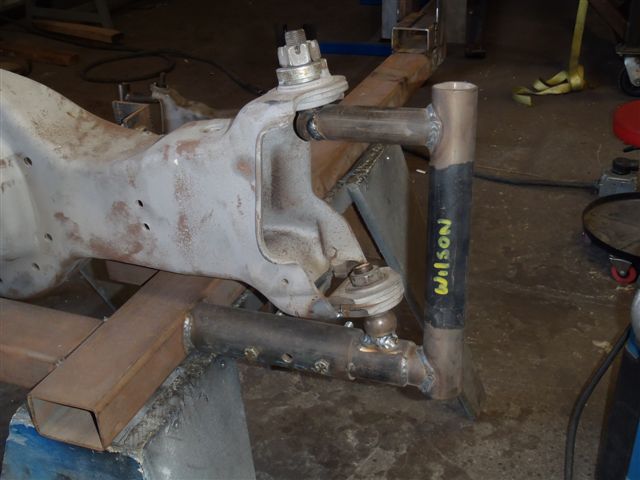

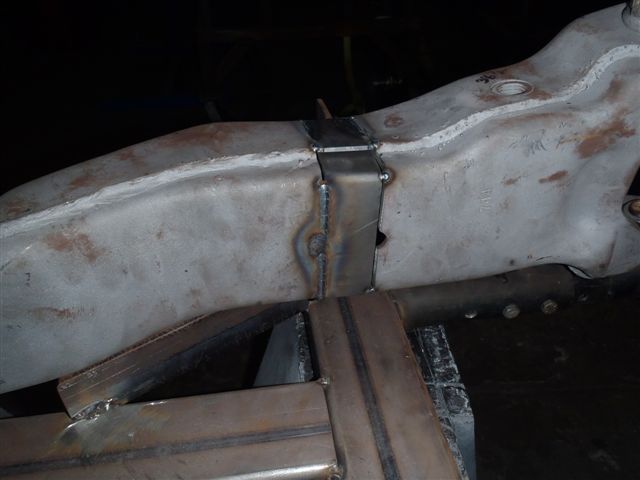

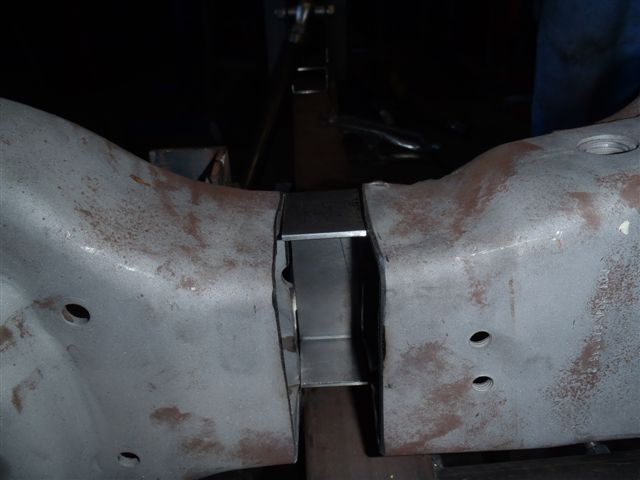

bajachris wrote:Here's a few pictures of my go fast front suspension build. It's for a class 3 race bronco. Rules allow 4" wider than stock so this build is 3" wider (1.5" per side). When it came time to do radius arms and locate the front end, we decided we better final the rear suspension first and then locate the front relative to that. Rules allow 2" longer than stock wheelbase and I want to push the front as far forward as possible with the rear end in stock location.
- Attachments
-
- 38.jpg (49.65 KiB) Viewed 3509 times
-
- 39.jpg (48.96 KiB) Viewed 3509 times
-
- 40.jpg (53.22 KiB) Viewed 3509 times
-
- 41.jpg (56.5 KiB) Viewed 3509 times
-
- 42.jpg (39.72 KiB) Viewed 3509 times
-
- 43.jpg (39.72 KiB) Viewed 3511 times
-
- 44.jpg (48.68 KiB) Viewed 3511 times
-
- 45.jpg (40.32 KiB) Viewed 3511 times
-
- 46.jpg (48.05 KiB) Viewed 3511 times
