Michael Cox's Street Queen

User avatar
philofab
Basura Blanca
Posts: 5643
Joined: Tue Dec 08, 2009 9:37 am
Bronco Info: A pile of crap.
Location: Bullhead, AZ
Contact:

Re: Michael Cox's Street Queen

Post by philofab »

philofab wrote:
Rmc wrote:So is this thing in process of getting a 4 link?
These pictures are from over a year ago... I can't remember if it's linked now or not.

Just looked. This Bronco is linked. The front end is wider too, I sold Mike some axle cores for him to extend if I remember right. He builds high end road race cars (Porsches and Beemers), so expect to see some cool stuff in this thread.


I have later photos of it but I will wait until Andy posts up.
User avatar
Silverslk
Posts: 1932
Joined: Tue Dec 08, 2009 12:13 pm
Bronco Info: 1995 Eddie Baur Bronco......GONE to a better home
Location: Garden Grove, CA
Contact:

Re: Michael Cox's Street Queen

Post by Silverslk »

philofab wrote:
philofab wrote:
Rmc wrote:So is this thing in process of getting a 4 link?
These pictures are from over a year ago... I can't remember if it's linked now or not.

Just looked. This Bronco is linked. The front end is wider too, I sold Mike some axle cores for him to extend if I remember right. He builds high end road race cars (Porsches and Beemers), so expect to see some cool stuff in this thread.


I have later photos of it but I will wait until Andy posts up.
The pic in his sale thread for that third member is from the first night he drove it completed... I'm just posting up pics from its progress for Mike.
Attachments
Smart Alex
Posts: 292
Joined: Wed Aug 11, 2010 7:25 pm
Bronco Info: 1991 351. lightweight special

Re: Michael Cox's Street Queen

Post by Smart Alex »

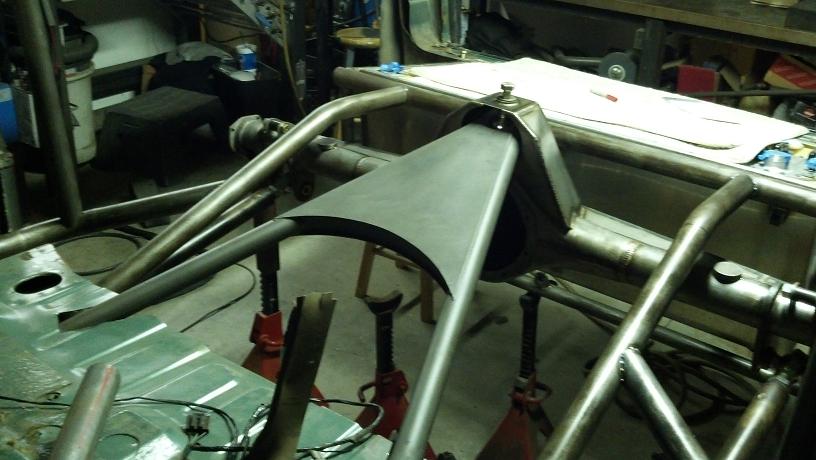

The rear end geometry is designed around drive line reliability

Driveshaft plunge is 1.08" and has 5 degrees of u joint angle at droop.

The rear upper control arm is 4130 just like everything else on the truck and is heat treated by Certified heat treating corp out of l.a.

Heat treatment was done on the UCA for side load (sliding the truck around a turn) and is made from 1.75"x0.120" 4130 and 0.100 plate if I remember correctly.

Michael
Smart Alex
Posts: 292
Joined: Wed Aug 11, 2010 7:25 pm
Bronco Info: 1991 351. lightweight special

Re: Michael Cox's Street Queen

Post by Smart Alex »

First real dirt shakedown besides a bmx size double jump is going down on Saturday in Barstow.
Rmc
El Jefe
Posts: 6026
Joined: Tue Oct 09, 2012 10:22 pm
Bronco Info: 94 bronco xlt prerunner
Location: IE SoCal
Contact:

Re: Michael Cox's Street Queen

Post by Rmc »

Be sure to have someone get vid and pics! I love living vicariously through you guys and the coveted free time to play.
User avatar
Silverslk
Posts: 1932
Joined: Tue Dec 08, 2009 12:13 pm
Bronco Info: 1995 Eddie Baur Bronco......GONE to a better home
Location: Garden Grove, CA
Contact:

Re: Michael Cox's Street Queen

Post by Silverslk »

Smart Alex wrote:First real dirt shakedown besides a bmx size double jump is going down on Saturday in Barstow.
Hey Mike, What time you going out? Maybe we can get some GFB'rs to head out and hang? I'm down to come out in my POS...

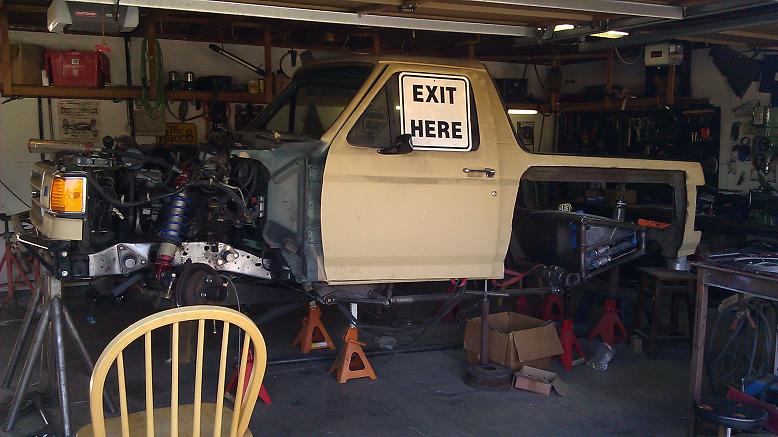

Andy since I'm behind on pics for the monster..... here are some more.
Attachments
User avatar
Silverslk
Posts: 1932
Joined: Tue Dec 08, 2009 12:13 pm
Bronco Info: 1995 Eddie Baur Bronco......GONE to a better home
Location: Garden Grove, CA
Contact:

Re: Michael Cox's Street Queen

Post by Silverslk »

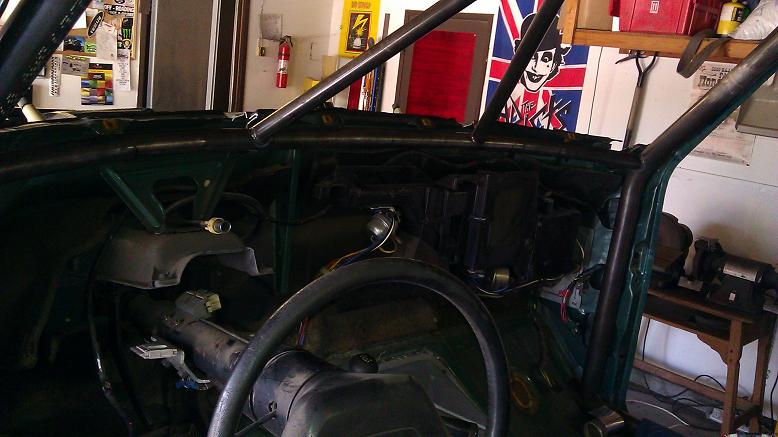

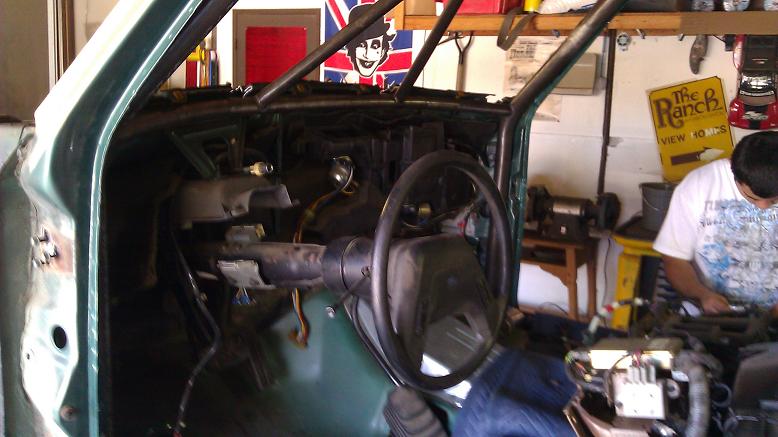

Some cage work started.
Attachments
User avatar
yikes
Founder
Posts: 4138
Joined: Sun Dec 06, 2009 7:51 am
Bronco Info: 1996 with tires and stuff
Location: Yucaipa, CA

Re: Michael Cox's Street Queen

Post by yikes »

Smart Alex wrote:First real dirt shakedown besides a bmx size double jump is going down on Saturday in Barstow.
Hmmmmmmmmm. I would love to see your work in action Mike. Taking it to the MORE race by chance?
Smart Alex
Posts: 292
Joined: Wed Aug 11, 2010 7:25 pm
Bronco Info: 1991 351. lightweight special

Re: Michael Cox's Street Queen

Post by Smart Alex »

There is a more race sat in Barstow?

Great.....

Anywhoo I won't be proud to show it off till the shocks get 3 or 4 revalves.
There rears are on set up 2..

Pos needs a new p.s. pump. It leaks...
I picked up a new trans today and working on getting a deal for an engine.
Which I'm not gonna tell you guys about till I can say... look what I got..
So I'm crossing my fingers running on a dream.
User avatar
tcm glx
Peanut Butter
Posts: 7308
Joined: Tue Dec 08, 2009 11:19 am
Bronco Info: 93 Ford Bronco 5.8
Location: Riverside Ca
Contact:

Re: Michael Cox's Street Queen

Post by tcm glx »

Smart Alex wrote:There is a more race sat in Barstow?

Great.....

Anywhoo I won't be proud to show it off till the shocks get 3 or 4 revalves.
There rears are on set up 2..

Pos needs a new p.s. pump. It leaks...
I picked up a new trans today and working on getting a deal for an engine.
Which I'm not gonna tell you guys about till I can say... look what I got..
So I'm crossing my fingers running on a dream.

Race is next weekend.......I would love to see it as well. With all the other cool stuff I've seen you done, no doubt this will be awesome.
Smart Alex
Posts: 292
Joined: Wed Aug 11, 2010 7:25 pm
Bronco Info: 1991 351. lightweight special

Re: Michael Cox's Street Queen

Post by Smart Alex »

tcm glx wrote:
Smart Alex wrote:There is a more race sat in Barstow?

Great.....

Anywhoo I won't be proud to show it off till the shocks get 3 or 4 revalves.
There rears are on set up 2..

Pos needs a new p.s. pump. It leaks...
I picked up a new trans today and working on getting a deal for an engine.
Which I'm not gonna tell you guys about till I can say... look what I got..
So I'm crossing my fingers running on a dream.

Race is next weekend.......I would love to see it as well. With all the other cool stuff I've seen you done, no doubt this will be awesome.
That's nice of you tony but its really just a hunk of junk with a bunch of crap welded on it..
Mabey I'll see ya.
User avatar
Silverslk
Posts: 1932
Joined: Tue Dec 08, 2009 12:13 pm
Bronco Info: 1995 Eddie Baur Bronco......GONE to a better home
Location: Garden Grove, CA
Contact:

Re: Michael Cox's Street Queen

Post by Silverslk »

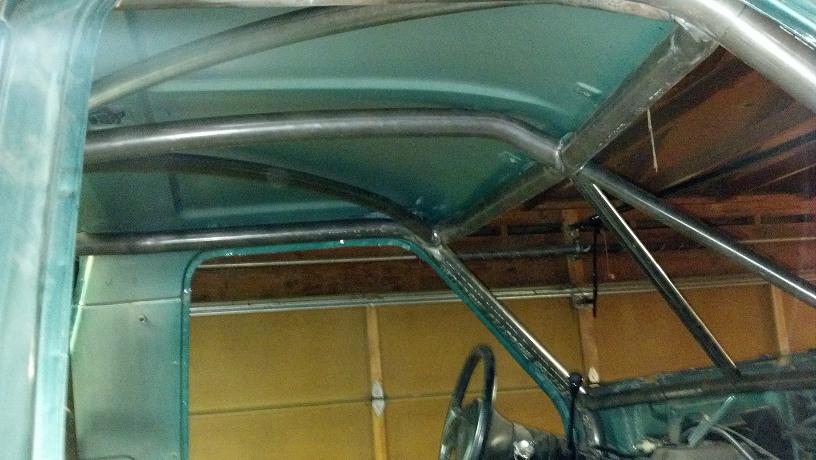

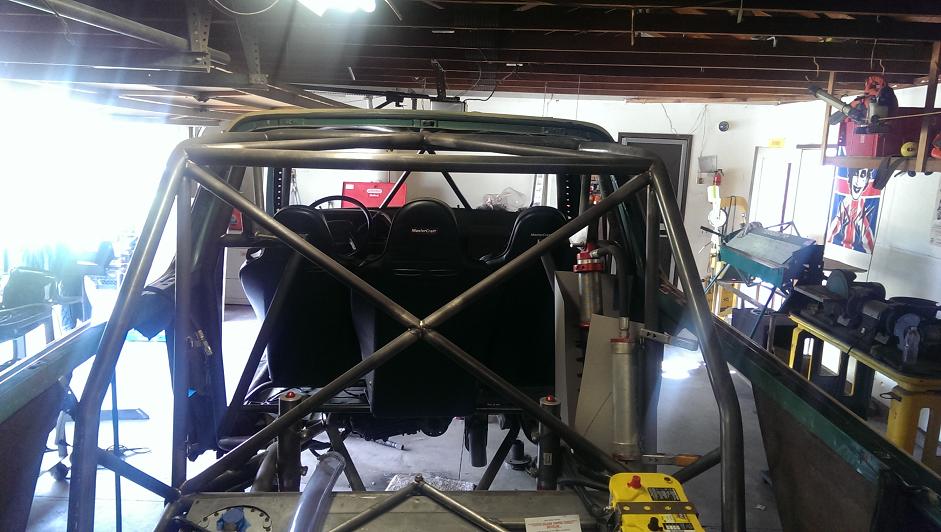

More cage pics
Attachments
User avatar
Silverslk
Posts: 1932
Joined: Tue Dec 08, 2009 12:13 pm
Bronco Info: 1995 Eddie Baur Bronco......GONE to a better home
Location: Garden Grove, CA
Contact:

Re: Michael Cox's Street Queen

Post by Silverslk »

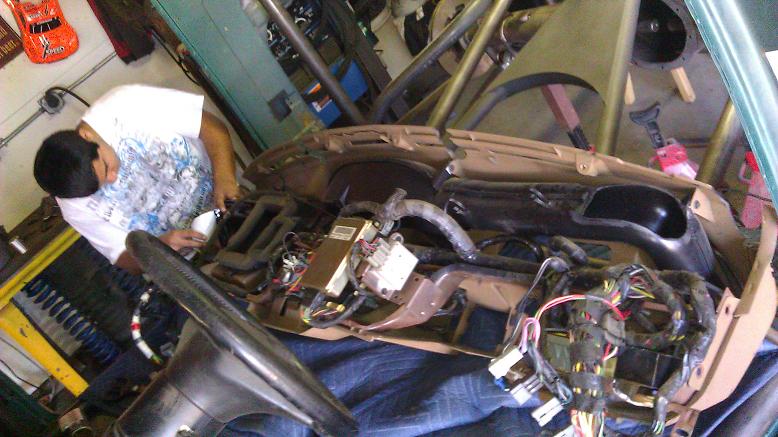

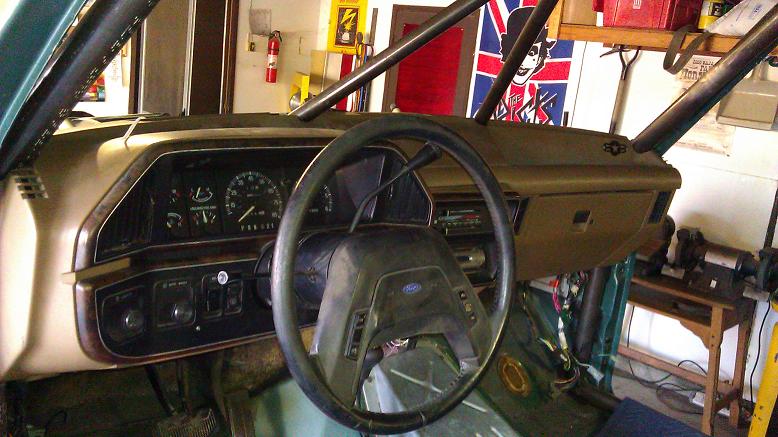

Post holiday pics!
Attachments
User avatar
mrmatt
Posts: 161
Joined: Fri Aug 19, 2011 8:49 am
Bronco Info: I don't have a bronco but all of my chase crew does
Location: garden grove,ca

Re: Michael Cox's Street Queen

Post by mrmatt »

That looks like some awesome work. I like how the attachement to the frame is done. The interlocking tube clamps are a nice touch! Those things aren't cheap either.

Did you truss your and extend the beams yourself? They look good.

Can't wait to see finished pics...
User avatar
Silverslk
Posts: 1932
Joined: Tue Dec 08, 2009 12:13 pm
Bronco Info: 1995 Eddie Baur Bronco......GONE to a better home
Location: Garden Grove, CA
Contact:

Re: Michael Cox's Street Queen

Post by Silverslk »

mrmatt wrote:That looks like some awesome work. I like how the attachement to the frame is done. The interlocking tube clamps are a nice touch! Those things aren't cheap either.

Did you truss your and extend the beams yourself? They look good.

Can't wait to see finished pics...

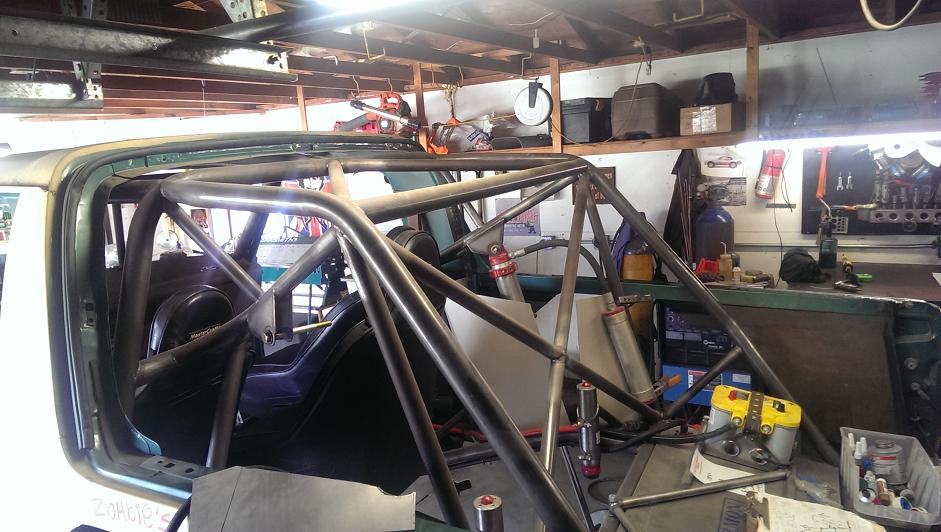

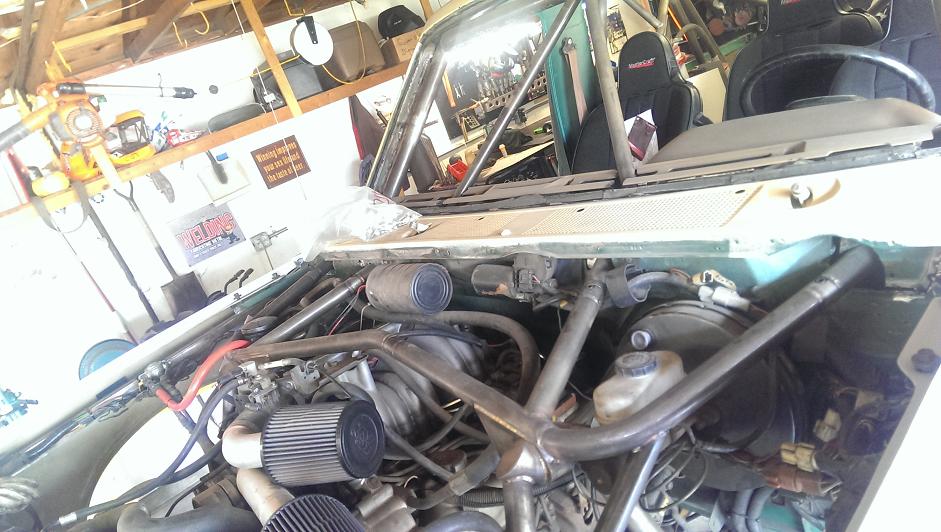

He's out testing in Barstow today Matt but here are more pics of cage/engine cage work with more use of tube clamps...
Attachments
User avatar
philofab
Basura Blanca
Posts: 5643
Joined: Tue Dec 08, 2009 9:37 am
Bronco Info: A pile of crap.
Location: Bullhead, AZ
Contact:

Re: Michael Cox's Street Queen

Post by philofab »

Did he get his battery issue fixed?
User avatar
Silverslk
Posts: 1932
Joined: Tue Dec 08, 2009 12:13 pm
Bronco Info: 1995 Eddie Baur Bronco......GONE to a better home
Location: Garden Grove, CA
Contact:

Re: Michael Cox's Street Queen

Post by Silverslk »

philofab wrote:Did he get his battery issue fixed?
Yeah he text me this morning that he replaced his battery and then the starter went bad. New battery and starter and he was on his way out to test.
Smart Alex
Posts: 292
Joined: Wed Aug 11, 2010 7:25 pm
Bronco Info: 1991 351. lightweight special

Re: Michael Cox's Street Queen

Post by Smart Alex »

User avatar
yikes
Founder
Posts: 4138
Joined: Sun Dec 06, 2009 7:51 am
Bronco Info: 1996 with tires and stuff
Location: Yucaipa, CA

Re: Michael Cox's Street Queen

Post by yikes »

Woohoooo!! So, how was it? Looked great for the first time out. A bit of tuning and that thing is going to rock it! Well done Mike.
cs_drums
Posts: 2912
Joined: Wed Dec 22, 2010 10:39 am
Bronco Info: 94 5.8 Bronco w/dreams of being finished

Re: Michael Cox's Street Queen

Post by cs_drums »

Nice!
