AC Diagram
My AC isn't working under load, research has told me this is a vacuum leak in the system. I found a small hose tucked by my battery that must have come off and someone stashed(stereo shop). I need to figure out where it goes as I am hoping it may fix my problem.
- rdcjuanb
- Posts: 262
- Joined: Wed Nov 30, 2011 9:37 pm
- Bronco Info: 1995 Bronco parked in garage. Long term project.
- Location: Rancho Santa Margarita
- Contact:
Re: AC Diagram
I have a 1995 5.8l
-
- Posts: 2328
- Joined: Mon May 27, 2013 12:25 am
- Bronco Info: Bronco List:
- Location: Phoenix, AZ
Re: AC Diagram
Just a guess but this is pretty common- look at the pass rear fender -firewall intersection area. Look for a white plastic hose- you should be able to get back under the loom and find a good spot- just cut out and put flexible vac hose.
http://www.vintageironfabworks.com
77- "Victoria"
71- "Annie" Halfcab
73- "Heloise"
96- "Cheryl"
95- Marilyn (F150)
77- "Victoria"
71- "Annie" Halfcab
73- "Heloise"
96- "Cheryl"
95- Marilyn (F150)
- funinthesun95
- Posts: 1701
- Joined: Thu May 13, 2010 2:06 pm
- Bronco Info: 1992 Bronco MAF UsShift
- Location: San Diego
- Contact:
Re: AC Diagram
I have also plugged these before until I find the correct location it has worked for me in the past....it worth a go
Good people + Great info = GFB
@csracingteam
@Cockstarmotorsports
@csracingteam
@Cockstarmotorsports
-
- Posts: 322
- Joined: Sun Jul 14, 2013 8:02 am
- Bronco Info: 1995 XLT Sport. 96 427w e4od obd II system........ SOLD IT
- Location: Henderson NV , Murray UT
Re: AC Diagram
If the Link will not work for you let me know
- Needles929
- Posts: 170
- Joined: Thu Sep 14, 2017 10:11 am
- Bronco Info: 95 Part Deux
- Location: Mesa AZ
Re: AC Diagram
Mine is doing the same thing and I think that I have it figured out.

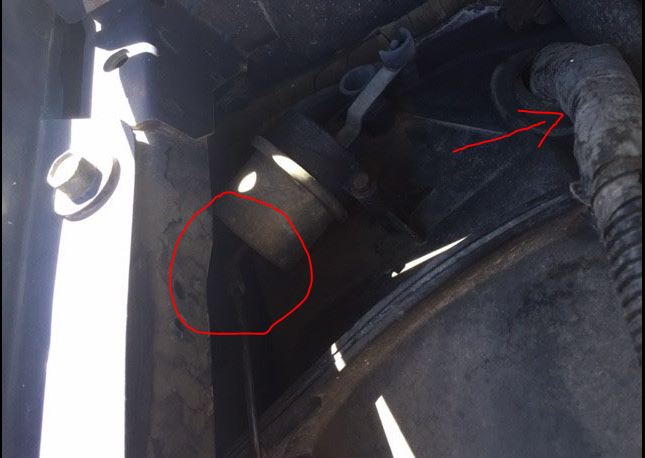

I barely touched this vacuum hose and it broke right off. The left side of the "T" in the picture, hose runs into the wire loom that goes to the firewall.
